G652D Underground Fiber Optic Cable Double Steel Aluminium Armored
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Name: | Outdoor Fiber Optic Cable | Fiber: | G652D Single Mode |
|---|---|---|---|
| Fiber Number: | 6-288 Core | Jacket: | Double PE Jacket |
| Fiber Brand: | Fiberhome YOFC Or Corning | Color: | Black |
| Armored: | Yes ,Double Armored | MOQ: | 3KM |
| OEM: | Accept | Operating Temperature: | -40~75 |
| High Light: | G652D Underground Fiber Optic Cable Steel Aluminium,Double Steel Underground Fiber Optic Cable |
||
Factory Double Steel Aluminium Armored Underground Fiber Optic Cable GYTA53 24 48 96 144 Core
Free Sample Underground Direct Buried Duct GYTA53 GYTY53 Singlemode Fiber Optical Outdoor Cable

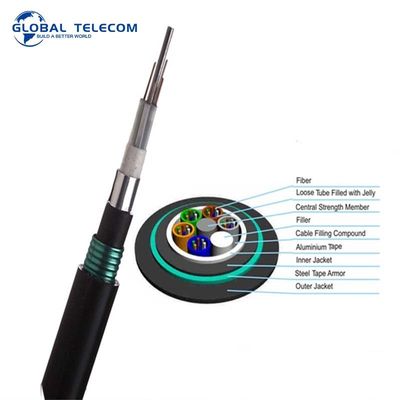

Armored Loose Tube Double Jacket/Single Armor fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations, including direct buried. With fiber counts up to 288 and S-Z strand designs.
Features
Loose tube gel-filled construction for superiorfiber protection.
Double jacket single armored(GYTY53) and Double jacket double armored
(GYTA53) for rodent pr.otection and direct burial.
UV and moisture-resistant design
Applications
Directburied, DuctorUnderground conduits.
Backbone.
Loose tube gel-filled construction for superiorfiber protection.
Double jacket single armored(GYTY53) and Double jacket double armored
(GYTA53) for rodent pr.otection and direct burial.
UV and moisture-resistant design
Applications
Directburied, DuctorUnderground conduits.
Backbone.
Technical Specifications
GYTY53(DJSA)
|
Fiber
Count |
Nominal
Diameter (mm) |
Nominal
Weight (kg/km) |
Allowable Tensile Load
(N) |
Allowable Crush Resistance
(N/100mm) |
||
|
Short Term
|
Long Term
|
Short Term
|
Long Term
|
|||
|
2~30
|
12.2
|
142
|
3000
|
1000
|
3000
|
1000
|
|
32-48
|
12.8
|
155
|
3000
|
1000
|
3000
|
1000
|
|
50-72
|
13.6
|
170
|
3000
|
1000
|
3000
|
1000
|
|
72-96
|
15.0
|
192
|
3000
|
1000
|
3000
|
1000
|
|
96-144
|
16.6
|
220
|
3000
|
1000
|
3000
|
1000
|
|
＞144
|
Avaliable upon customer's request
|
|||||
GYTA53( Aluminium polyethylene laminate)
|
Fiber
Count |
Nominal
Diameter (mm) |
Nominal
Weight (kg/km) |
Allowable Tensile Load
(N) |
Allowable Crush Resistance
(N/100mm) |
||
|
Short Term
|
Long Term
|
Short Term
|
Long Term
|
|||
|
2~30
|
13.2
|
162
|
3000
|
1000
|
3000
|
1000
|
|
32~48
|
13.8
|
175
|
3000
|
1000
|
3000
|
1000
|
|
50~72
|
14.6
|
205
|
3000
|
1000
|
3000
|
1000
|
|
74~96
|
16.0
|
230
|
3000
|
1000
|
3000
|
1000
|
|
98~144
|
17.6
|
285
|
3000
|
1000
|
3000
|
1000
|
|
＞144
|
Avaliable upon customer's request
|
|||||
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people
for more detailed information
